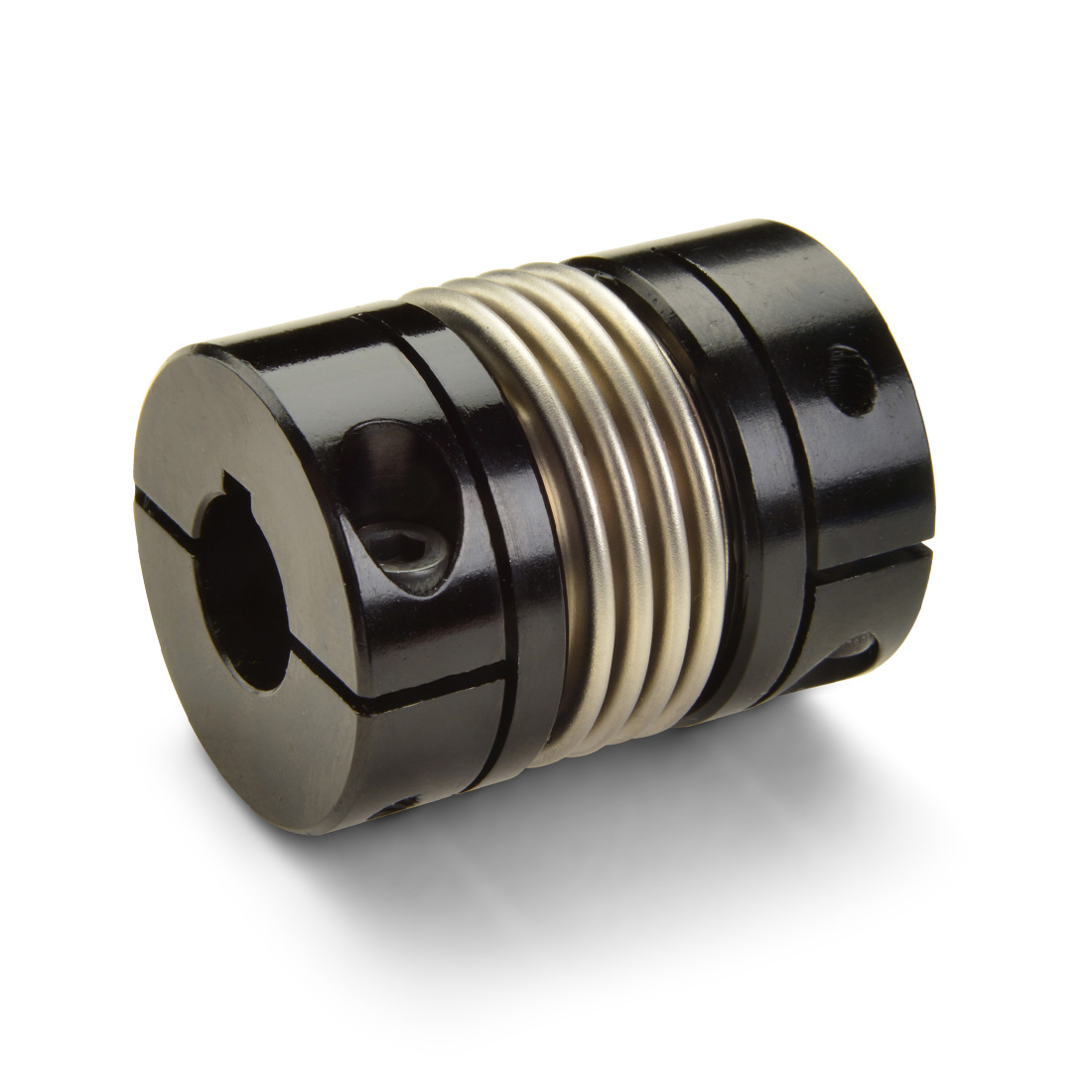

MBCK57-32-16-A
Manufacturer
Ruland
Description
32mm X 16mm Bores
57.2mm Od, 82.2mm Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
57.2mm Od, 82.2mm Length
Bellows Coupling With Keyways
High Stiffness
Aluminum

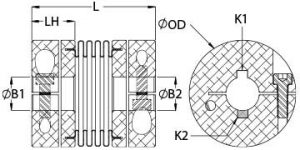

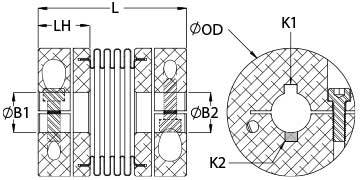

Bore (B1)
32 mm
Bore (B2)
16 mm
O.D. (D)
2.250 in (57.2 mm)
Length (L)
3.235 in (82.2 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Static Torque
60.00 Nm
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M6
Dynamic Torque Non-Reversing
30.00 Nm
Hex Wrench Size
5.0 mm
Dynamic Torque Reversing
15.00 Nm
Torsional Stiffness
135 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.30 mm
Axial Motion
0.75 mm
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.76 mm
Maximum Speed
10000 RPM
Seating Torque
16 Nm
Length (L)
3.235 in (82.2 mm)
B1 Max Shaft Penetration
38.0 mm
O.D. (D)
2.250 in (57.2 mm)
Material
Aluminum
Bore (B1)
32 mm
Bore (B2)
16 mm
Keyway
Yes
Keyway (K1)
10 mm
Keyway (K2)
5 mm
B2 Max Shaft Penetration
38.0 mm
Number of Screws
2 ea
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
