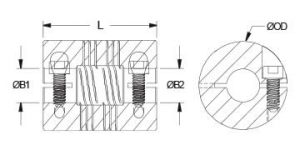

PCR6-1.5-1.5-A
Manufacturer
Ruland
Description
3/32" X 3/32" Bores
0.375" Od, 0.563" Length
Four Beam Coupling
Aluminum Clamp Style
0.375" Od, 0.563" Length
Four Beam Coupling
Aluminum Clamp Style
Bore (B1)
0.0938 in
Bore (B2)
0.0938 in
O.D. (D)
0.375 in (9.5 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
0.29 Nm
Parallel Misalignment
0.008 in
Angular Misalignment
3.0 deg
Torsional Stiffness
1.340 Deg/lb-in
Dynamic Torque Reversing
1.375 lb-in
Dynamic Torque Non-Reversing
2.75 lb-in
Static Torque
5.5 lb-in
Cap Screw
M1.6
UNSPC
31163003
Shaft Tolerance
+0.0000 in / -0.0005 in
Product Group
P-Series 4 Beam Couplings Clamp
Country of Origin
USA
Temperature
-40°F to 225°F (-40°C to 107°C)
Maximum Speed
6000 RPM
Hex Wrench Size
1.5 mm
Number of Screws
2 ea
O.D. (D)
0.375 in (9.5 mm)
Tariff Code
8483.60.8000
Conflict Minerals
Compliant
RoHS3
Compliant
REACH
Compliant
ISO 9001:2015
Certified
Screw Finish
Black Oxide
Screw Material
Alloy Steel
Bore Tolerance
+0.001 in / -0.000 in
B2 Max Shaft Penetration
0.265 in
B1 Max Shaft Penetration
0.265 in
Keyway
No
Bore (B2)
0.0938 in
Bore (B1)
0.0938 in
Material
Aluminum
Axial Motion
0.005 in
