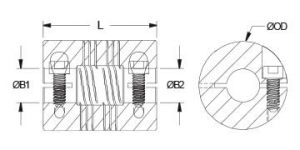

PCR8-1.5-1.5-SS
Manufacturer
Ruland
Description
3/32" X 3/32" Bores
0.500" Od, 0.750" Length
Four Beam Coupling
Stainless Steel Clamp Style
0.500" Od, 0.750" Length
Four Beam Coupling
Stainless Steel Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Screw Material
Alloy Steel
Material
303 Stainless Steel
Bore (B1)
0.0938 in
Bore (B2)
0.0938 in
Keyway
No
B1 Max Shaft Penetration
0.356 in
B2 Max Shaft Penetration
0.356 in
Number of Screws
2 ea
O.D. (D)
0.500 in (12.7 mm)
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Bore Tolerance
+0.001 in / -0.000 in
Seating Torque
0.6 Nm
UNSPC
31163003
Cap Screw
M2
Temperature
-40°F to 350°F (-40°C to 176°C)
Country of Origin
USA
Product Group
P-Series 4 Beam Couplings Clamp
Shaft Tolerance
+0.0000 in / -0.0005 in
Zero-Backlash?
Yes
Balanced Design
Yes
Hex Wrench Size
1.5 mm
Maximum Speed
6000 RPM
Static Torque
11 lb-in
Dynamic Torque Non-Reversing
5.5 lb-in
Dynamic Torque Reversing
2.75 lb-in
Torsional Stiffness
0.368 Deg/lb-in
Angular Misalignment
3.0 deg
Parallel Misalignment
0.008 in
Axial Motion
0.005 in
