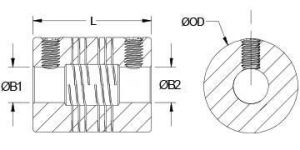

PSR8-1.5-1.5-A
Manufacturer
Ruland
Description
3/32" X 3/32" Bores
0.500" Od, 0.750" Length
Four Beam Coupling
Aluminum Set Screw Style
0.500" Od, 0.750" Length
Four Beam Coupling
Aluminum Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Bore Tolerance
+0.001 in / -0.000 in
Tariff Code
8483.60.8000
Conflict Minerals
Compliant
RoHS3
Compliant
REACH
Compliant
ISO 9001:2015
Certified
Screw Finish
Black Oxide
Number of Screws
2 ea
Screw Material
Alloy Steel
B2 Max Shaft Penetration
0.356 in
B1 Max Shaft Penetration
0.356 in
Keyway
No
Bore (B2)
0.0938 in
Bore (B1)
0.0938 in
Material
Aluminum
O.D. (D)
0.500 in (12.7 mm)
Hex Wrench Size
0.9 mm
UNSPC
31163003
Parallel Misalignment
0.008 in
Angular Misalignment
3.0 deg
Torsional Stiffness
0.750 Deg/lb-in
Dynamic Torque Reversing
2 lb-in
Dynamic Torque Non-Reversing
4 lb-in
Static Torque
8 lb-in
Forged Set Screw
M2
Seating Torque
0.21 Nm
Zero-Backlash?
Yes
Shaft Tolerance
+0.0000 in / -0.0005 in
Product Group
P-Series 4 Beam Couplings Set Screw
Country of Origin
USA
Temperature
-40°F to 225°F (-40°C to 107°C)
Maximum Speed
6000 RPM
Axial Motion
0.005 in
